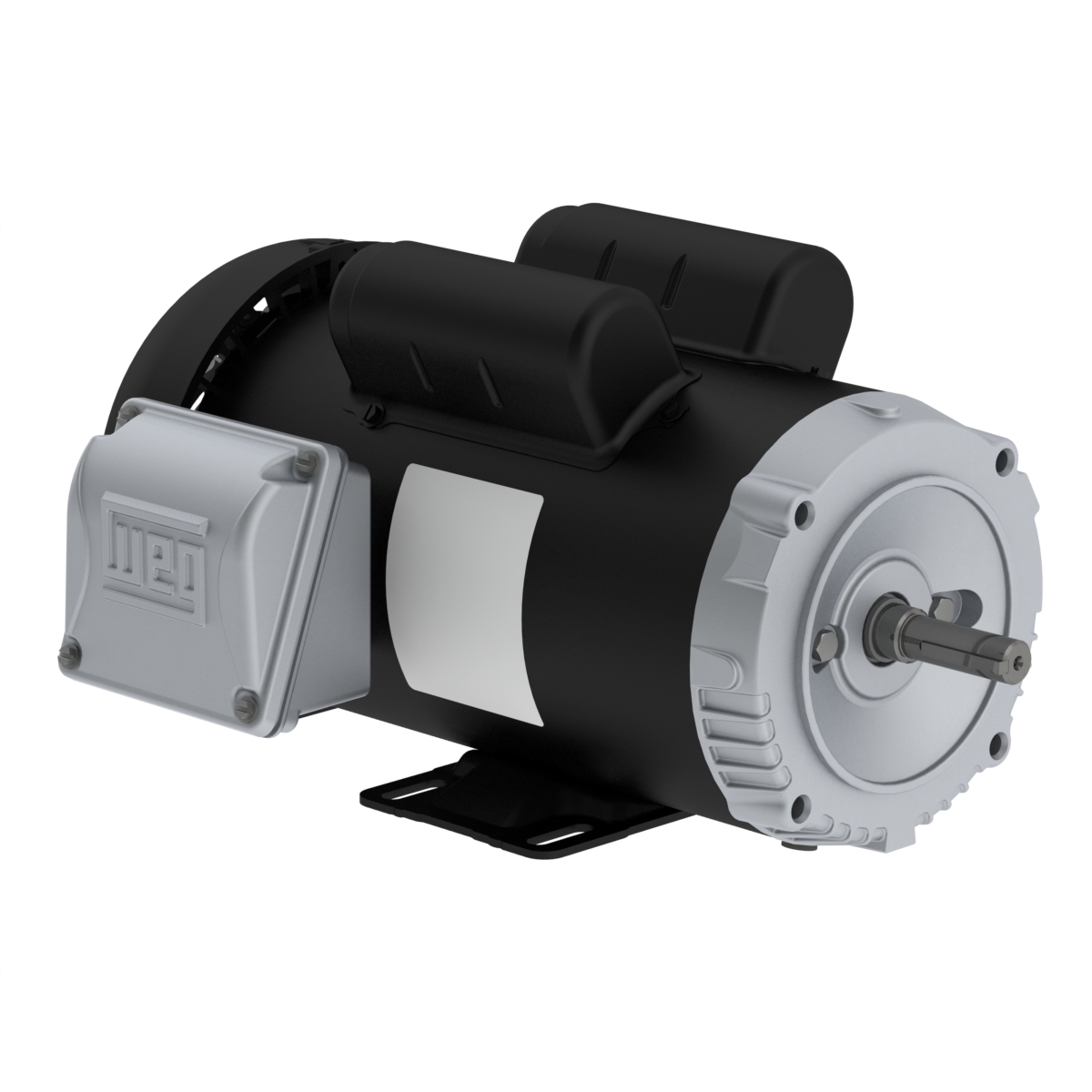

00136ES1B56C-S – WEG AC Motor

Rolled Steel 1 HP 4P 56C 1Ph 115/208-230 V 60 Hz IC01 – ODP – Footless
Downloads: 00136ES1B56C-S

SKU: 00136ES1B56C-S Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

00136ES1B56C-S – WEG AC Motor. The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Downloads: 00136ES1B56C-S

Additional information

Weight	29.4 lbs
Manufacturer	WEG
Application	General Purpose
Frame Material	Rolled Steel
Frame	56C
Degree of Protection	IP55
Horsepower	1 HP
Kilowatts	0.75 kW
Phase	1 Ph
Rated Voltage	115/208-230 V
Rated Frequency	60 Hz
Rated Current	10.1/5.64-5.06 A
Rated Speed	3500 RPM
Synchronous speed	3600 RPM
Pole	2:00 PM
Service Factor	1.15 (1.00 @ 208V) SF
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	C
Rated Torque	1.50 ft.lb
Terminal Box	Left position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	68.0 dB(A)
