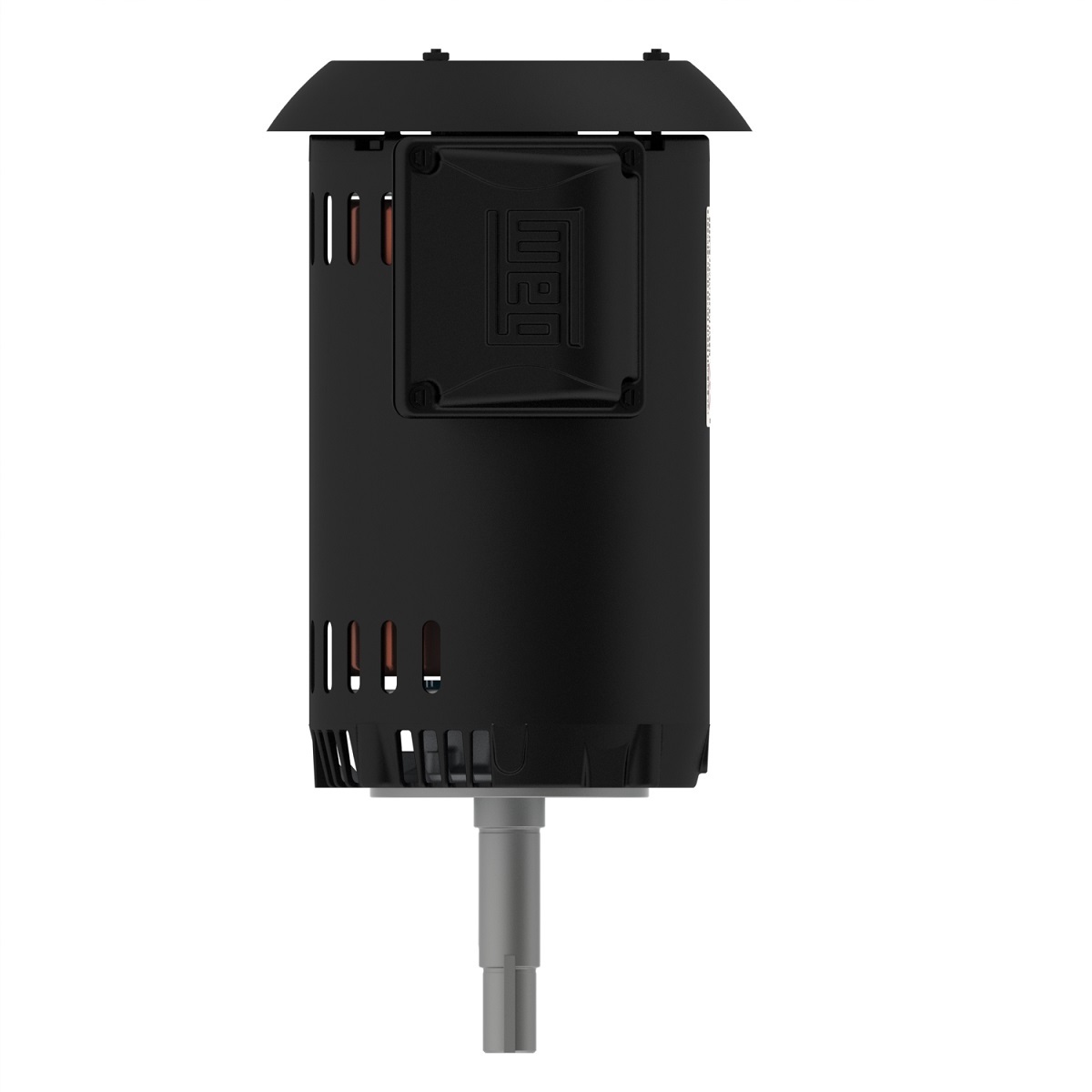

00112OP3E145JMV-S WEG AC Motor
00112OP3E145JMV-S – WEG AC Motor
Rolled Steel JM Pump High Efficiency 1 HP 6P 143/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 – ODP – Footless
Downloads: 00112OP3E145JMV-S
Additional information
| Weight | 39.2 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Rolled Steel |
| Frame | 143/5JM |
| Degree of Protection | |
| Horsepower | 1 HP |
| Kilowatts | 0.75 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 3.42/1.71 A |
| Rated Speed | 1150 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC01 – ODP |
| Mounting | W-6 |
| Flange | C |
| Rated Torque | 4.57 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 50 dB(A) |
| Misc | Replaced by : 00112OT3E145JMV-S – 13500386 |
