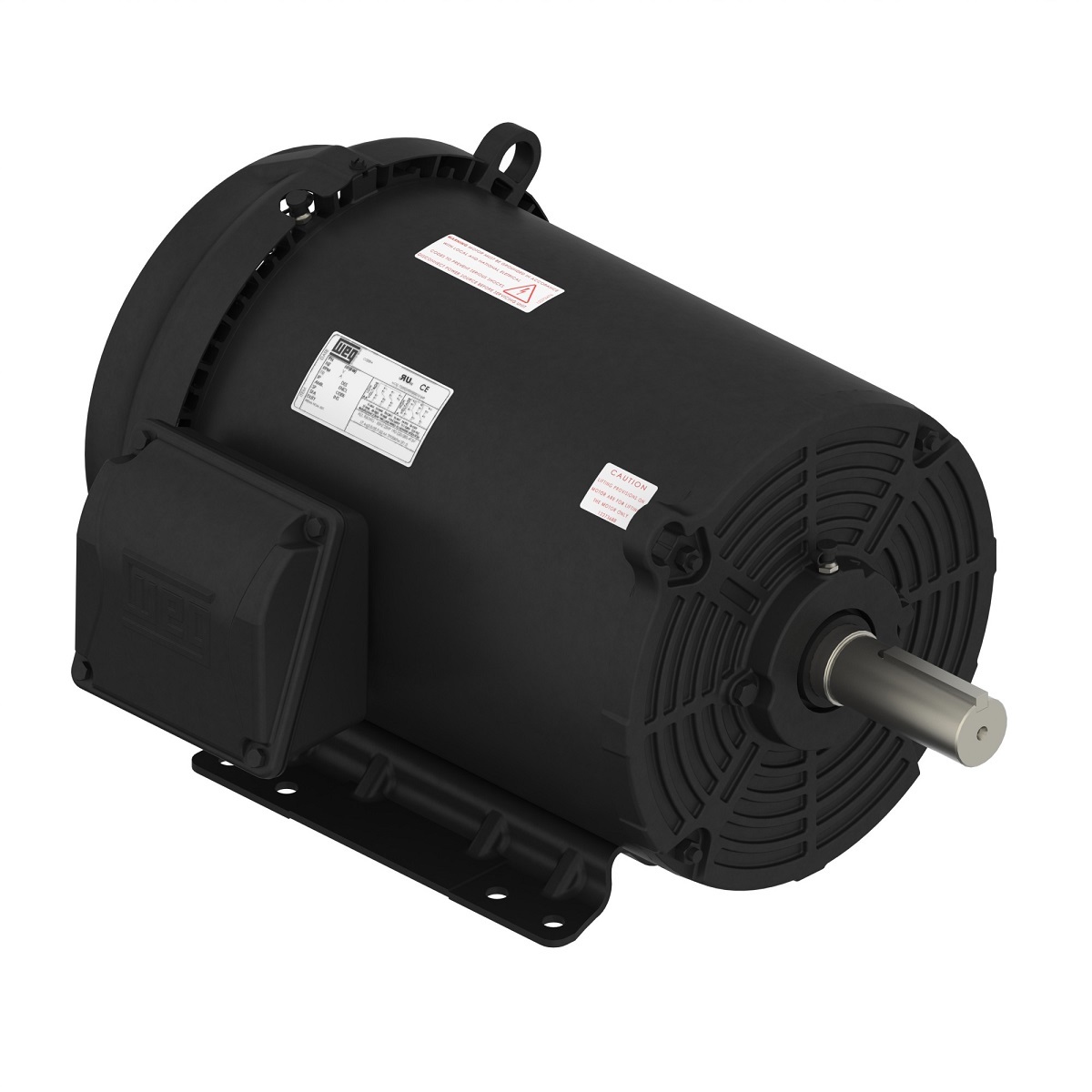

01012ET3H256T-S WEG AC Motor
01012ET3H256T-S – WEG AC Motor
Rolled Steel NEMA Premium Efficiency 10 HP 6P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 – TEFC – Footless
Downloads: 01012ET3H256T-S
Additional information
| Weight | 238 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 254/6T |
| Degree of Protection | IP55 |
| Horsepower | 10 HP |
| Kilowatts | 7.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 575 V |
| Rated Frequency | 60 Hz |
| Rated Current | 11.0 A |
| Rated Speed | 1175 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 44.7 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 59.0 dB(A) |
| Misc |
